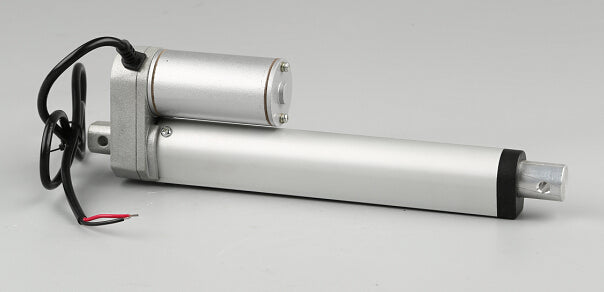

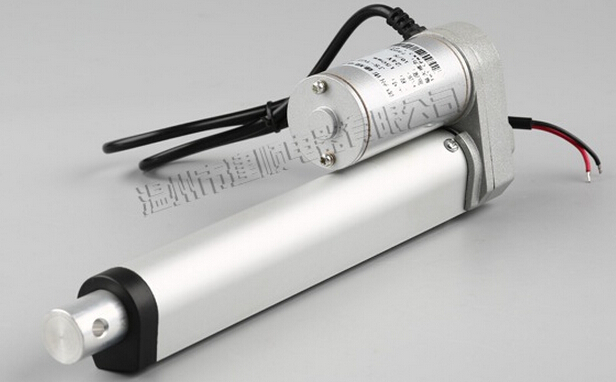

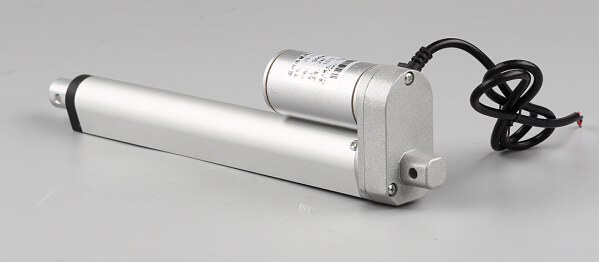

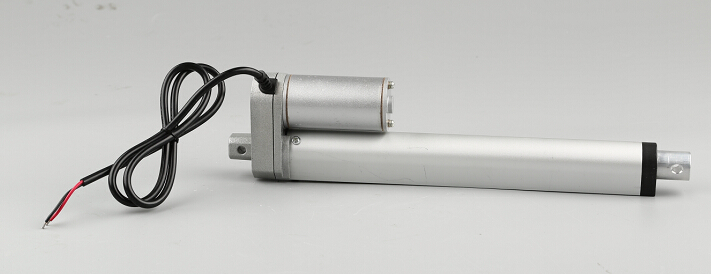

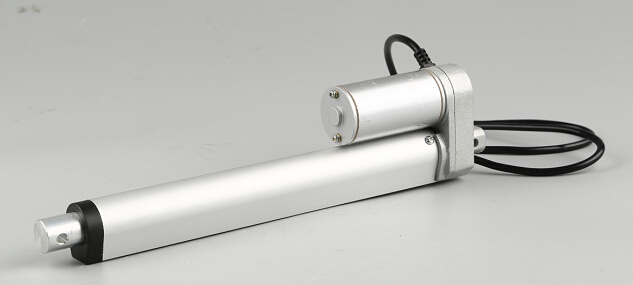

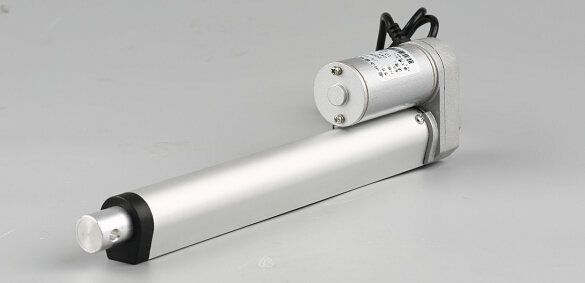

12VDCLouverActuator1000NSpeedJS-TGZ-U1stroke200MMDC Linear Actuator
12VDCLouverActuator1000NSpeedJS-TGZ-U1stroke200MMDC Linear Actuator
Regular price
$52.36 AUD
Regular price
Sale price
$52.36 AUD
Quantity
Couldn't load pickup availability
| Model ‘JS-TGZ-U1’ |
| Application: ship, car, industrial machinery, car, window, cleaning, other |
| 1) Voltage: 12VDC 24VDC Permanent Magnet |
| 2) Motor power: 30W |
| 3) Standard stroke: 50.100.150.200.250.300 350.400.450.500.550.600.650.700.750. |

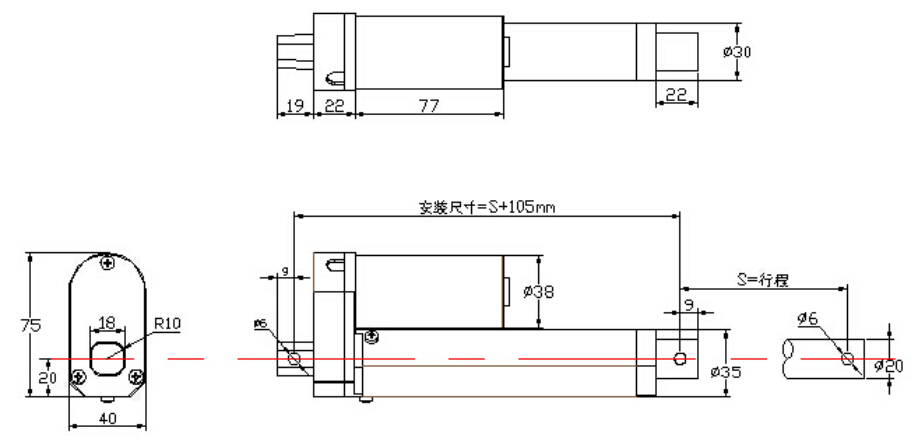

| 4) Standard installation size: Stroke 105mm |
| 5) PS: Special instructions Stroke can be designed according to your requirements |
| 6) Load capacity: 750N |
| 7) No-load speed: 10 / s |
| 8) Working efficiency: 10% |
| 9) Ambient temperature: -5 C 50 C° |
| 10) Protection grade: IP45 |
| 11) Built-in limit switch, not adjustable after leaving the factory |
| 12) Low noise design, DB＜53 |
